Two Colors Pc Plastic Pipe Extrusion Line For Led Tube

Brand Name : LB

Model Number : LB-1240

Certification : CE,ISO9001

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : USD,EUR

Payment Terms : L/C, T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : NORMAL PACKAGE

EXTRUDER TYPE : CO-EXTRUSION SINGLE SCREW EXTRUDER

EXTRUDER MODEL : 65/28 AND 50/28

MOTOR POWER : 22KW AND 11KW

RAW MATERIAL : PC MATERIAL

HAUL-OFFS : TWO BELT HAULING

CALIBRATION TABLE LENGTH : 2500MM

CALIBRATIN TABLE WIDTH : 600MM

CONNECTION MATERIAL : SUS304

WARRANTY : 1 YEAR

Contact Now

TWO COLORS PC LED TUBE EXTRUSION LINE

DETAILS OF EXTRUSION LINE

In the middel west countries, the LED light market is vast and huge demand. For the LED light, the cover and bottom profile is made by PC material. The two colors PC LED tube needs co-extrusion crafts. For this line, it equips one 65/28 22kw extruder and another 50/28 11kw extruder. The co-extrusion ensures the profile with two color. We adopt 2500mm long and 600mm width calibration table. For the haul-off machine, it is two belt haul-off method.It ensures the cover and bottom LED light tube fix each other greatly. At the end, we have cutter unit and stacker for lying the finished PC profile.

PRODUCT DESCRIPTION:

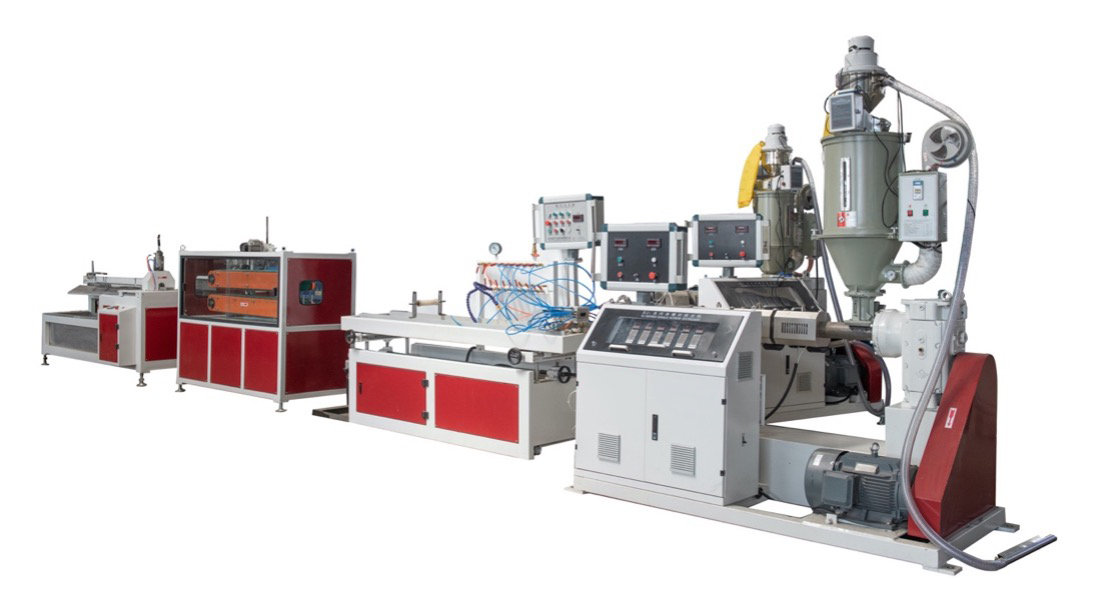

PC profile extrusion line

Two Colors Pc Plastic Pipe Extrusion Line For Led Tube

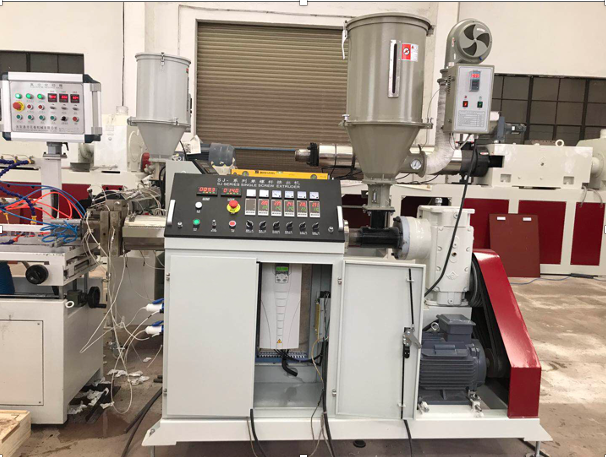

The 65/28 22kw single screw extruder

Two Colors Pc Plastic Pipe Extrusion Line For Led Tube

The 50/28 11kw single screw extruder

Two Colors Pc Plastic Pipe Extrusion Line For Led Tube

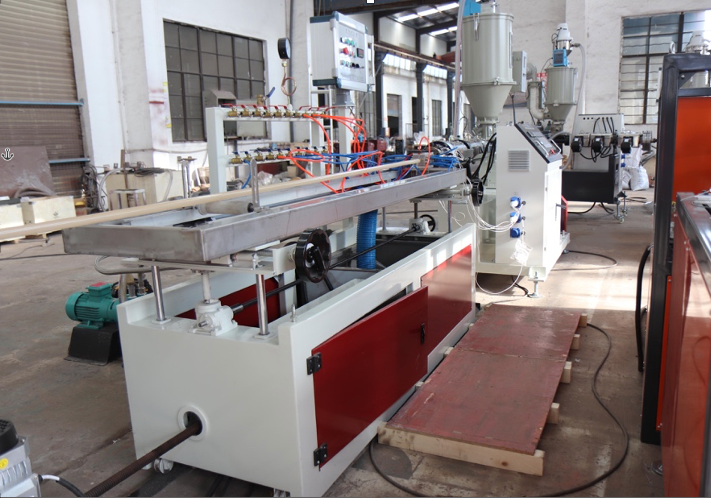

Vacuum and calibrating table

Two Colors Pc Plastic Pipe Extrusion Line For Led Tube

If you are interested in the PC profile extrusion line, pls contact me for more information.
